Part Number :

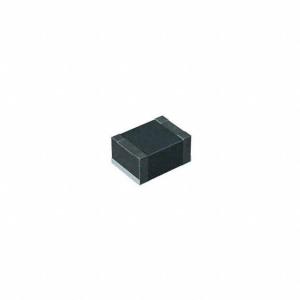

BRL2515T3R3MD
Manufacturer :
TAIYO YUDEN
Description :
BRL2515T3R3MD datasheet pdf and Fixed Inductors product details from TAIYO YUDEN stock available at Rozee
Lifecycle :
New from this manufacturer
Delivery :
DHL、UPS、FedEx、Registered Mail
Payment :
T/T Paypal Visa MoneyGram Western Union
More Information :
BRL2515T3R3MD More Information
ECAD :
Request Free CAD Models
Pricing(USD) :
$0.00
Remark :
Manufacturer: TAIYO YUDEN.
Rozee is one of the Distributors.
Wide range of applications.
Depth :
1.7 mm
Width :
1.524 mm
Length :
2.5 mm
Min Width :
1.3 mm
Shielding :
Unshielded
DC Current :
750 mA
Max Length :
2.7 mm
Composition :
Wirewound
Case/Package :
1006
Current Rating :
750 mA
Number of Pins :
2
Military Standard :
Not
Saturation Current :
800 mA
Case Code (Imperial) :
1006
Max Saturation Current :
800 mA
Max Operating Temperature :
105 °C
Max Temperature Rise Current :
750 mA
Products Category :
Inductors, Coils, Chokes - Fixed Inductors
Qty :
104 In Stock
Applications :
Building automation
Factory automation & control
Portable electronics
Mount :
Surface Mount
Height :
1.2 mm
Max Width :
1.7 mm
Packaging :
Tape & Reel (TR)
Tolerance :
20 %
Inductance :
3.3 µH
Min Length :
2.3 mm
Termination :
SMD/SMT
Core Material :
Ferrite
Max DC Current :
800 mA
Test Frequency :
1 MHz
Case Code (Metric) :
2515
DC Resistance (DCR) :
279.5 mΩ
Height - Seated (Max) :
1.1938 mm
Self Resonant Frequency :
70 MHz
Min Operating Temperature :
-40 °C
