Part Number : BC857BV,115
Manufacturer : Nexperia
Description : BC857BV,115 datasheet pdf and Transistors - Bipolar (BJT) - Arrays product details from Nexperia stock available at Rozee
Lifecycle : New from this manufacturer
Delivery : DHL、UPS、FedEx、Registered Mail
Payment : T/T Paypal Visa MoneyGram Western Union
More Information : BC857BV,115 More Information
ECAD : Request Free CAD Models
Pricing(USD) : $0.34
Remark : Manufacturer: Nexperia. Rozee is one of the Distributors. Wide range of applications.
Mount : Surface Mount
Height : 600 µm
Weight : 4.535924 g
Polarity : PNP
Packaging : Tape & Reel
Termination : SMD/SMT
Max Frequency : 100 MHz
Contact Plating : Tin
Forward Voltage : 1 V
Number of Elements : 2
Element Configuration : Dual
Max Collector Current : 100 mA
Gain Bandwidth Product : 100 MHz
Min Operating Temperature : -65 °C
Collector Base Voltage (VCBO) : 50 V
Max Forward Surge Current (Ifsm) : 100 mA
Collector Emitter Saturation Voltage : 400 mV
Products Category : Discrete Semiconductor - Transistors - Bipolar (BJT) - Arrays
Qty : 71 In Stock
Applications : Factory automation & control Wireless infrastructure Wired networking
Width : 1.3 mm
Length : 1.7 mm
hFE Min : 200
Frequency : 100 MHz
Schedule B : 8541210080
Case/Package : SOT-666
Number of Pins : 6
Forward Current : 15 mA
Power Dissipation : 200 mW
Transition Frequency : 100 MHz
Max Breakdown Voltage : 45 V
Max Power Dissipation : 200 mW
Max Operating Temperature : 150 °C
Emitter Base Voltage (VEBO) : 5 V
Collector Emitter Voltage (VCEO) : 45 V
Collector Emitter Breakdown Voltage : 45 V
Max Repetitive Reverse Voltage (Vrrm) : 70 V
![]() |

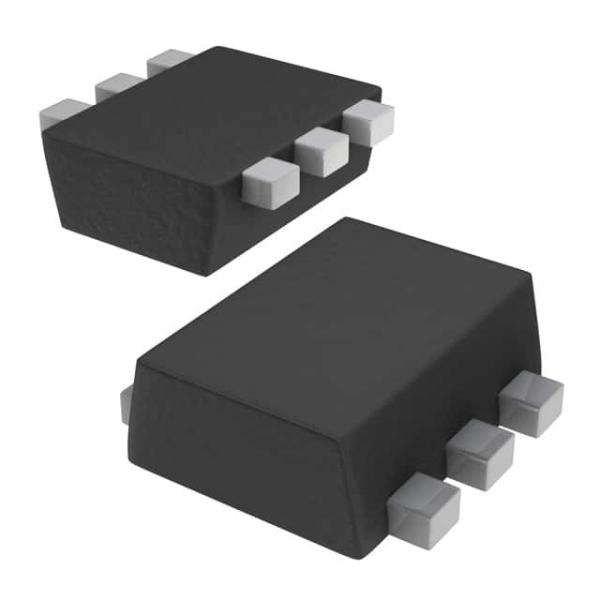

BC857BV,115 Images |
